KSC-PSW7EQ

Powered Enclosure Subwoofer with Active EQ Technology

The compact die-cast enclosure allows installation almost anywhere, including tight spaces such as under a seat or panel. Features the built-in high efficiency class-D amplifier, 200 x 130mm aluminum diaphragm with micro-step shape reinforcement. This micro-step suppresses the unwanted movement of the diaphragm and reproduces accurate and powerful bass sound. The newly developed ACTIVE EQ TECHNOLOGY with three types of bass curves, to match the music of various genres, delivers super-live sound experience . With the wired remote you have full control of the powered subwoofer.

Class D Amplifier

Low-pass Filter

Amplifier Included

Speaker level Input

Compact Powered Subwoofer

[1] Large Aluminum Woofer Cone.
Larger aluminum diaphragm (200 x 130mm) for more woofer stability, ensuring that the bass is deep and clear.
[2] Micro-step Shape on the long side of the diaphragm surrounding.
This suppresses the unwanted movement of the diaphragm, and supports accurate vibration and reproduces accurate bass sound to the music.
[3] High Roll Urethane Surround.
The Urethane surround provides long, linear excursion for excellent control and better focussed bass.
[4] Compact Die-cast Enclosure.

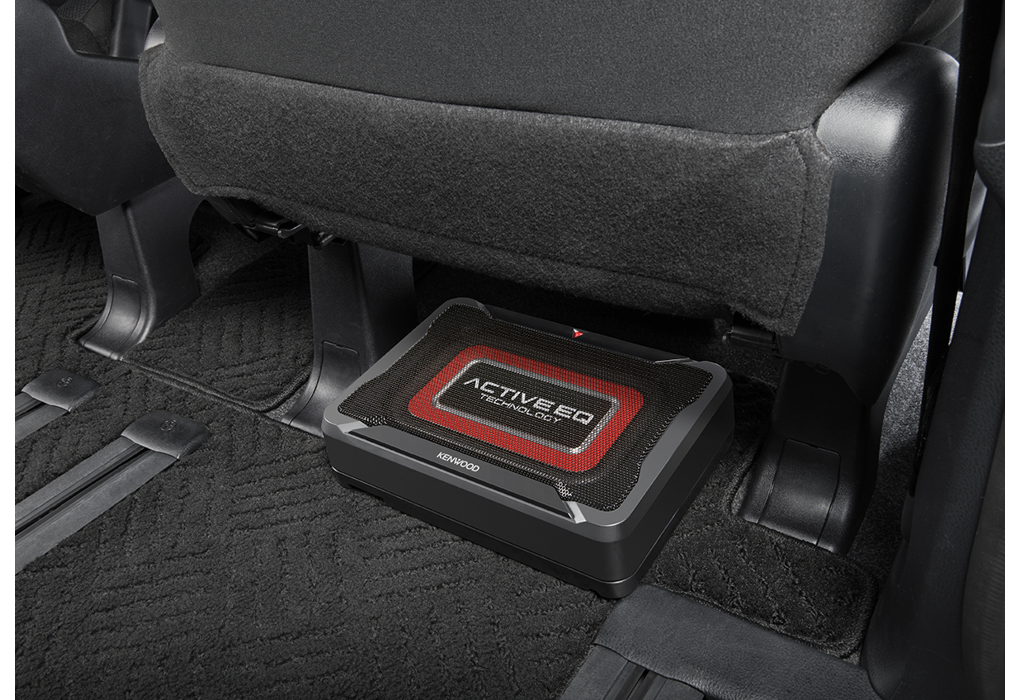

Allows for installation almost anywhere, including tight spaces such as under a seat or panel.

Active EQ Technology

Three types of bass to match the music of various genres equipped with ACTIVE EQ TECHNOLOGY
● HEAVY: Deep and intense bass sound
● FLAT: Natural and smooth bass sound
● TIGHT: Rich and clean bass sound

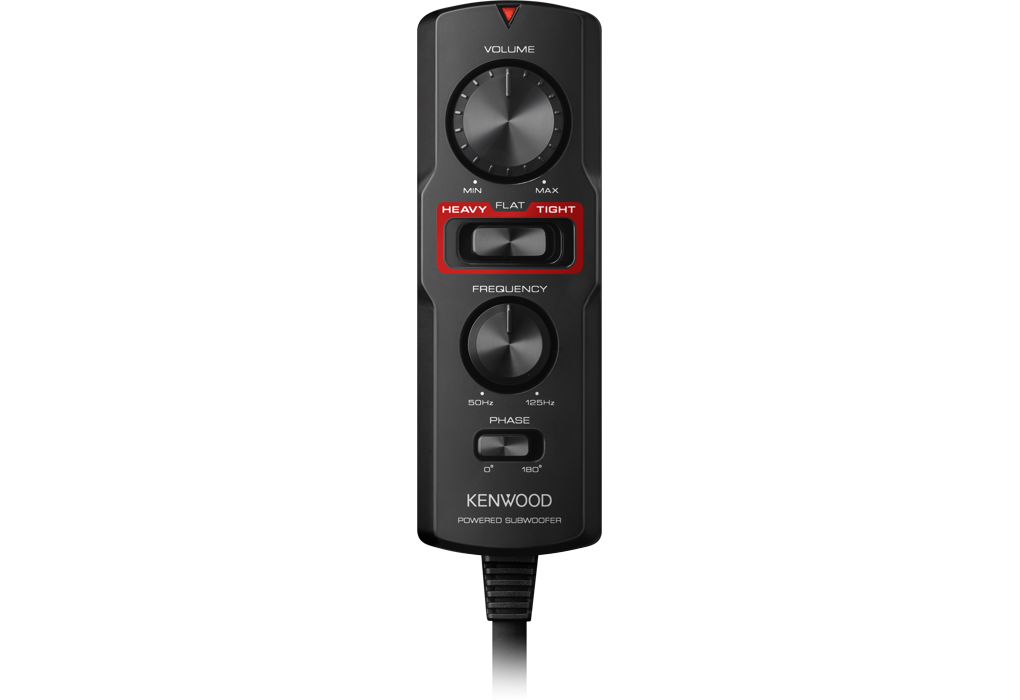

Remote Control Sound Adjustment

[1] Power Indicator
[2] Volume Control: Input sensitivity knob
[3] Active AQ: Equalizer selector switch
[4] Frequency: Cut-off frequency control know
[5] Phase: Phase select switch
[6] 5meter Wired cable

Features

High efficiency class-D amplifier for rich and clean bass sound.
Wired remote with Power indicator, Active EQ switch, Volume & Frequency contr. & phase switch.
Line-in & speaker level input with signal sensing turn-on.
160W Maximum output power for deep and intense bass sound.
ACTIVE EQ TECHNOLOGY with three types of bass to match the music of various genres.
200 x 130mm Aluminum woofer cone with micro-step shape diaphragm surrounding.
Compact aluminum die-cast enclosure (280 x 70 x 220mm).
Connection cables and Installation brackets included.
